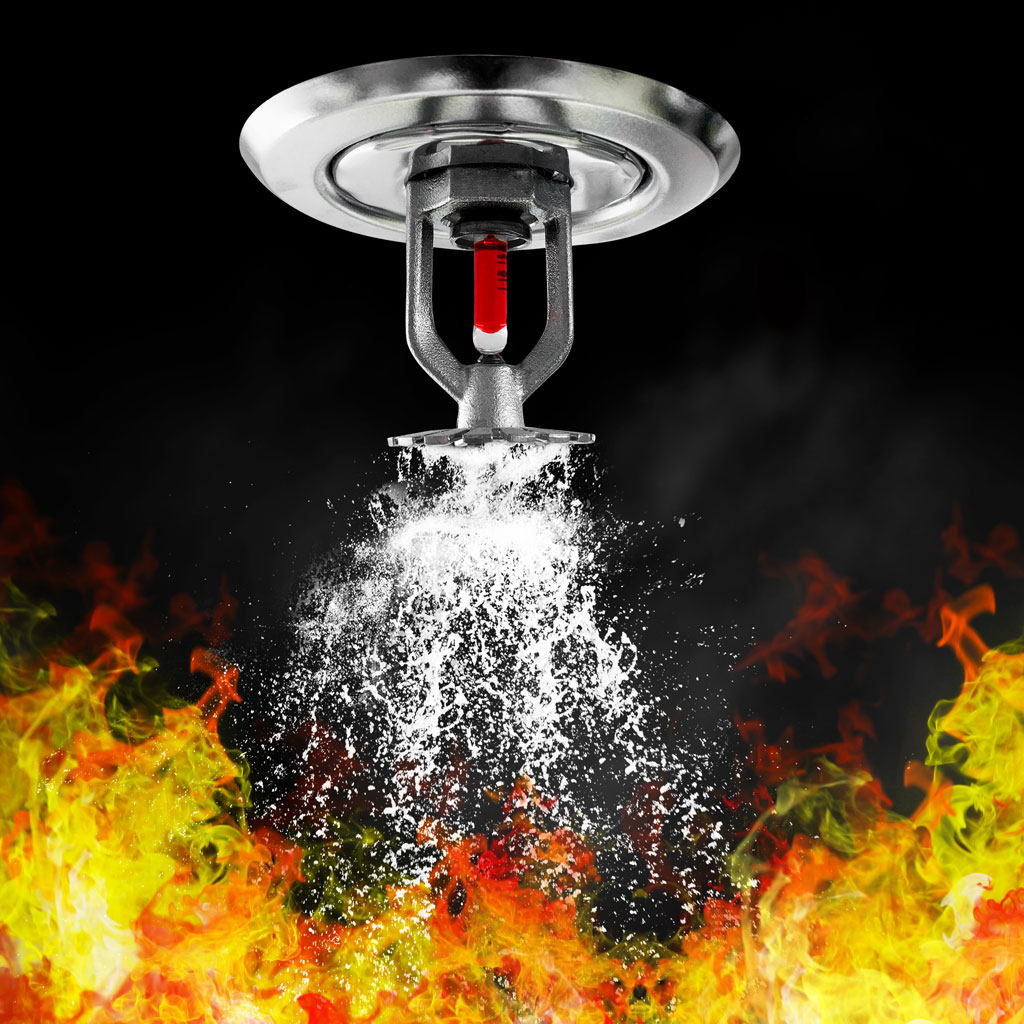

A fire sprinkler or sprinkler head is the component of a fire sprinkler system that discharges water when the effects of a fire have been detected, Nearly all fire sprinklers are composed of the same components: a sealing assembly or ‘plug’ that prevents water from escaping, a heat-sensitive element that allows water to flow at a given temperature, a deflector that distributes water effectively, and a frame.
Pentent Sprinklers: Used mainly, where water pipeling, used for sprinklers installation is concealed. The sprinkler is mounted in a l discharging spray hemispherically.
Conventional Sprinklers: Used either in Upring or in pendent positions producing a spherical pattern with part of water sprayed towards the cell.
Upright Sprinklers: Used mainly where the water pipeline is exposed. Mounted only in Upright position discharging spray hemispherically.
Sidewall Sprinklers: Used mainly, where the pipeline run along the wall, sprinklers forms out ward half paraboloid pattern

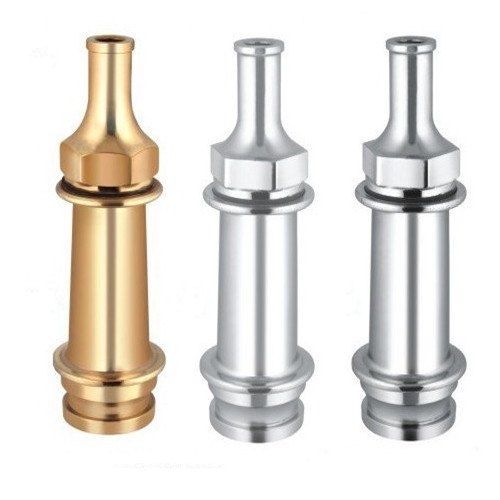

With the thorough knowledge of the varied aspects of the market, we have been able to put forth the clients a commendable assortment of Short Branch Pipe Nozzle. The offered range is fabricated in strict accordance with the global quality standards by employing advent tools and modern machinery. Offered in varied specifications, the range can also be customized as per the requirements of the customers.
| Material | Gun Metal LTB-ll & Stainless Steel |
| Size | 63 mm. | 12mm to 20mm dia for ISI marked |
| Performance Test | Hydraulic Test: 21Kgf/cm2 |
| Approval | ISI Marked from Bureau of Indian Standards |

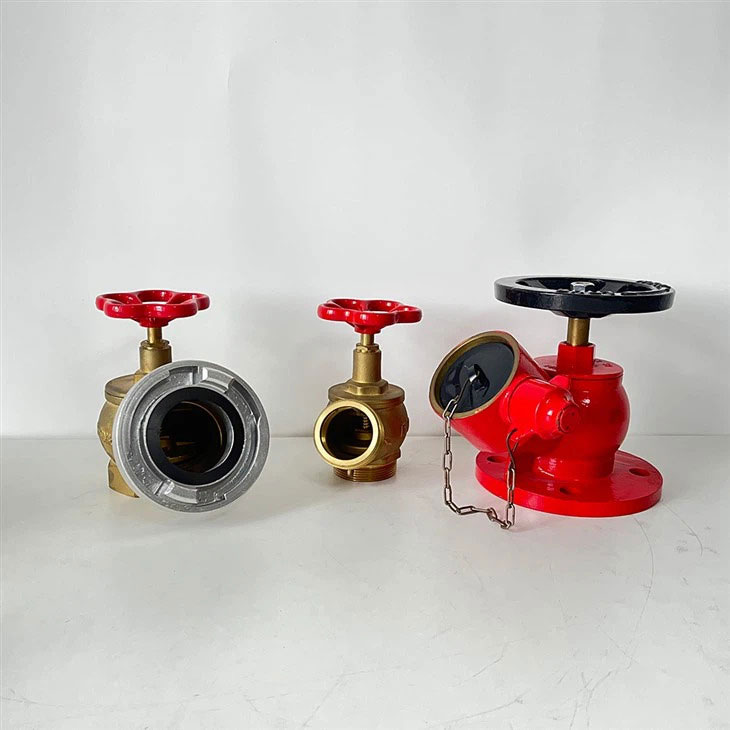

These Hydrant Valves are available with single head or double head flanged inlet and used to handle flow and direction of water. The offered ranges are widely acclaimed for the impeccable finish and low maintenance. The product is duly quality checked prior to dispatch to our customers. We make available this product
| Material | Gun Metal LTB-ll & Stainless Steel |
| Size | 63 mm |
| Performance Test | Hydraulic Test: 21Kgf/cm2 Water Tightness 14Kgf/cm2 Flow Test:900 LPM at 7Kg/cm2 |
| Approval | ISI Marked from Bureau of Indian Standards |

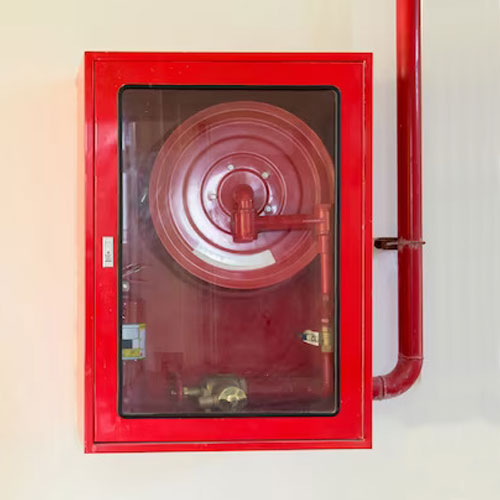

careless handling will damage the product and affect functioning Material: Mild Steel & Plastic; Colour: Red Useful equipment for fire fighting. Design with bayonet model coupling. safe for use.
| Material | Mild Steel Sheet thick 1.5 mm, 3mm thick Glass in Front. |
| Size | (a) 750x600x250 For Keeping 02 Nos. Hose Pipe 15 mtrs & Pipe (b) 600x600x250 For Keeping 01 Nos. Hose Pipe 30 mtrs & Pipe (c) 450x450x250 For Keeping 01 Nos. Hose Pipe 15 mtrs & Pipe (d) 900x600x450 For Keeping 01 No. Landing Valve, 02 Nos. |
| Warranty | 1 Year from the date of supply |

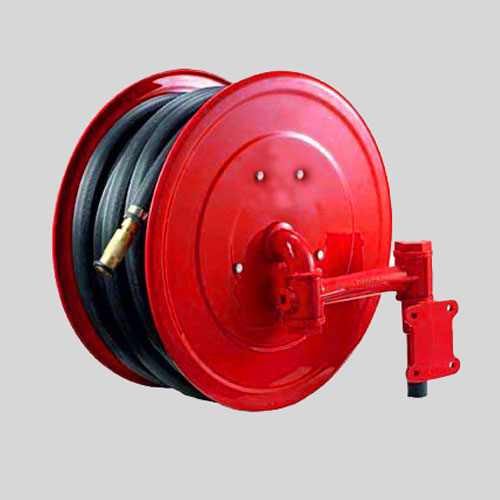

A fire hose is a high-pressure hose that carries water or other fire retardant (such as foam) to a fire to extinguish it. Outdoors, it attaches either to a fire engine or a fire hydrant. Indoors, it can permanently attach to a building’s standpipe or plumbing system.
| Hose Reel | Confirmed IS-884 |
| Water Flow Rate | 24 lpm |
| Jet Length | 6 mts Min. |
| Working Pressure | 7Kgf/cm2 |
| Test Pressure | 10.5Kg/cm2 |
| Approval | ISI Marked from Bureau of Indian Standards |
| Warranty | 1 Year with 30 mtr Rubber Hose |

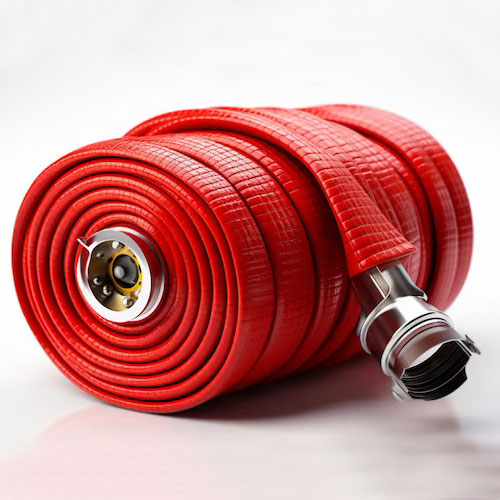

A fire hose is a high-pressure hose used to carry water or other fire retardant (such as foam) to a fire to extinguish it. Outdoors, it is attached either to a fire engine or a fire hydrant. Indores, it can be permanently attached to a building’s standpipe or plumbing system.
| Approval | ISI Marked from Bureau of Indian Standards |
| Working Pressure | 21Kgf/cm2 |
| Busting Pressure | 35Kgf/cm2 |

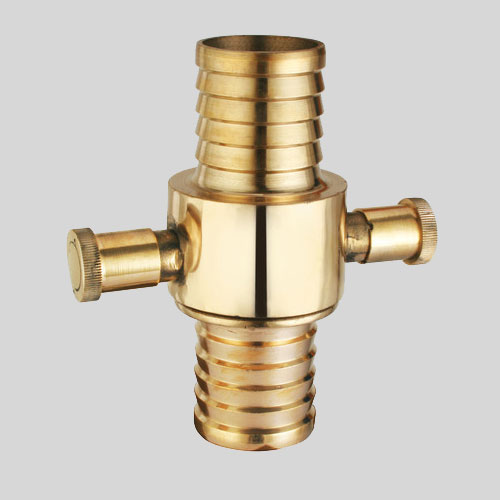

Coupling is a connector on the end of a hose to connect (or couple) it with another hose or with a tap or a hose appliance, such as an irrigation, fire sprinkler. It is usually made of stainless steel, Gun metal.
| Material | Gun Metal LTB-ll & Stainless Steel |
| Size | 63 mm. |
| Performance Test | Hydraulic Test: 21Kgf/cm2 |
| Approval | ISI Marked from Bureau of Indian Standards |
A functional fire hydrant system is crucial for ensuring safety during fire emergencies. At Sri Triveni Crafts, we specialize in providing reliable fire hydrant system parts designed to meet the highest safety standards. Our expert team understands the importance of these components and ensures that our products are of the finest quality, helping you achieve a reliable fire safety infrastructure.
Firstly, it is important to note that the fire hydrant system consists of several critical parts that work in tandem to provide efficient water supply during a fire. For instance, the fire hydrant valve plays a vital role in controlling water flow. By regulating the amount of water, it ensures that firefighters have the right pressure when tackling a fire. Without a properly functioning valve, the system could be ineffective.
Moreover, fire hydrant hoses are an indispensable part of the system. These hoses are designed to withstand high pressure, allowing firefighters to deliver water to the fire with force. In addition, the fire hydrant cabinet serves a crucial role in organizing and storing the hoses and other firefighting equipment. With the cabinet, emergency teams can access the necessary tools quickly, which reduces delays during urgent situations. Additionally, it helps keep the equipment secure when not in use.
In addition to the fire hydrant system, a fire sprinkler system often complements its operation. While the hydrant system delivers water directly to the fire scene, sprinklers automatically activate when heat is detected, helping control flames before they spread. Therefore, both systems work together to provide a more comprehensive fire-fighting solution. Likewise, the fire fighting hydrant system ensures that water is readily available, allowing firefighters to act swiftly and efficiently when every second counts.
In conclusion, at Sri Triveni Crafts, we provide high-quality fire hydrant system parts that are essential for effective fire suppression. Our fire hydrant valves, fire hydrant hoses, and fire hydrant cabinets are designed to meet industry standards and provide reliable performance. By choosing us, you are ensuring that your fire hydrant system is equipped with the best components available. To learn more about our products and services, visit our Fire Hydrant System, where you can explore the full range of fire hydrant system parts we offer.
